Side-loading loaders

Side-loading loaders Product introduction

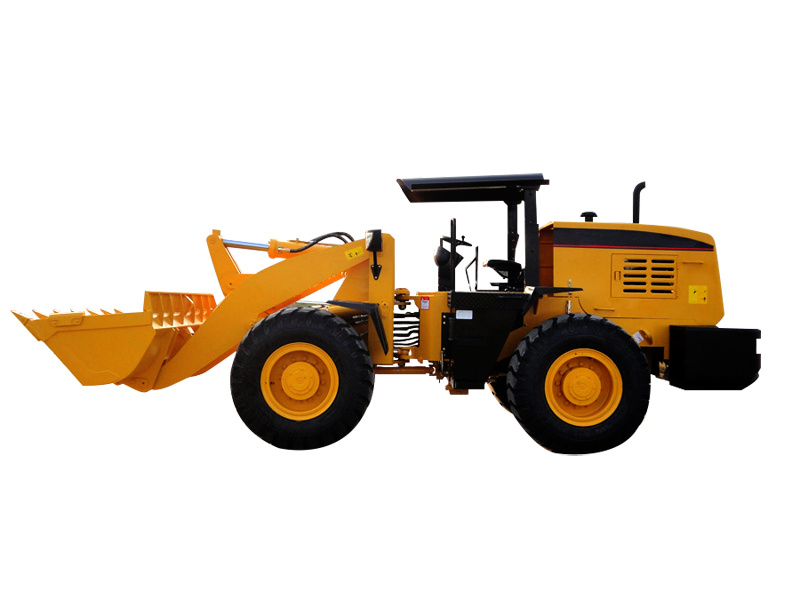

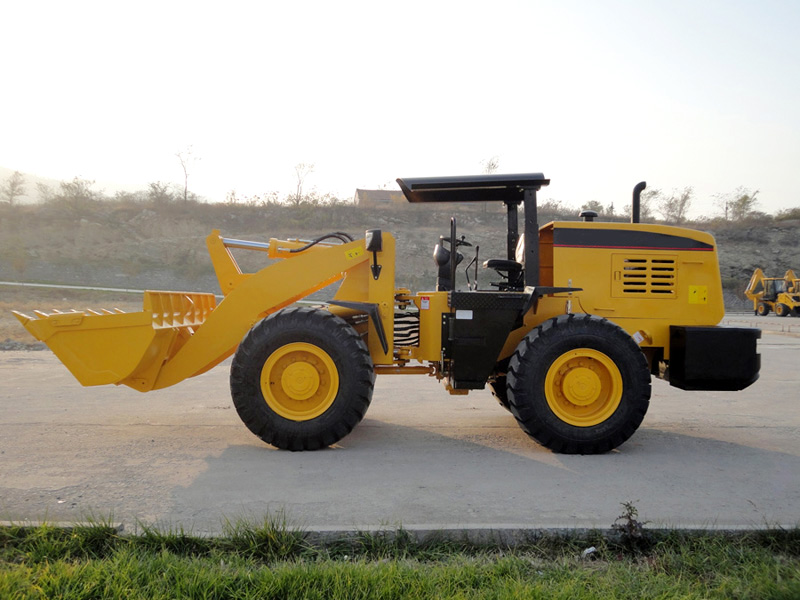

The side-loading loader is a product with a common model as the main body, adding some special functions, which can discharge the front side, and can also realize the side-turning discharge (left side unloading, or right side unloading). The front discharge works on the same principle as the normal model.

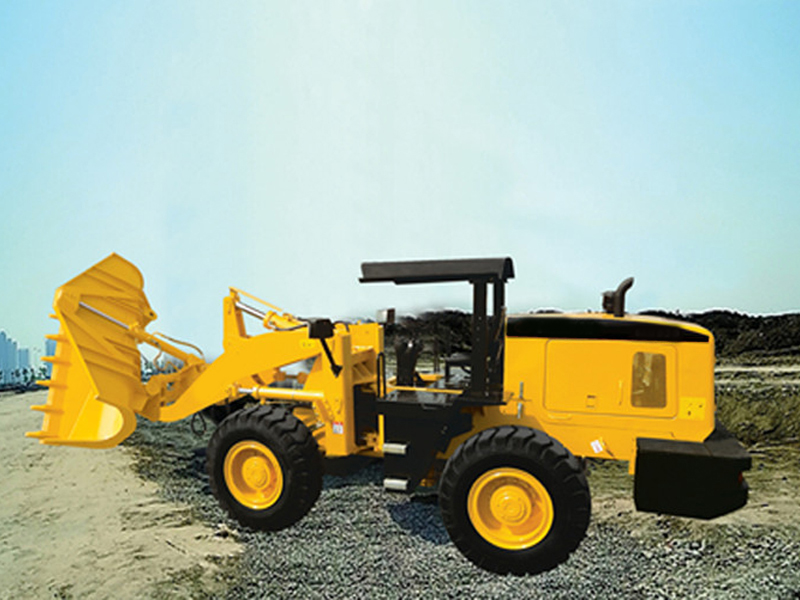

When the side is unloaded, the bucket side unloading cylinder acts to roll sideways around the side of the bracket to achieve the purpose of unloading. This unloading method, the loader and the transport vehicle work side by side, does not need to turn the head, especially in tunnels or other work spaces with small road widths, the work efficiency is high, and at the same time it has a higher unloading height value.
The side-loading loader is a downhole mining equipment integrating loading, transportation and prefabrication. It is mainly used for non-coal mine shovel loading, ore and boulder after transportation and blasting, and also for railway, highway and tunnel engineering. Because it is flexible, full-featured, low-cost, high-efficiency, and work efficiency is dozens of times higher than traditional mining processes. Once the underground trackless mining technology entered a new stage, it set off a field in the world of mining technology. revolution. Foreign countries have been developing underground scrapers since the early 1960s. Nowadays, they have become an important tool for underground transportation systems. Since the late 1970s and early 1980s, underground scrapers have been introduced. In recent years, with the mining industry. With continuous development, side-loading loaders have been recognized and accepted by more and more mines, becoming the preferred mining equipment for underground mining to improve efficiency and reduce costs.
The underground scraper business is one of the core businesses of our company in the field of mining machinery. The series of side-loading loaders developed by the company is a mature technology that the company has used to design and develop underground scrapers and mining engineering machinery products for many years. Drawing on the advanced structure of domestic and international underground scrapers, the high-performance, high-reliability, economical and practical underground scraper developed through continuous improvement and practice. The main functional components of the product are all imported components, which can be installed, transported and operated by single person. It is especially suitable for working conditions, narrow, low and muddy working surface. The working site is not less than 2.4m × 2.4m The working conditions can be operated. The whole machine has beautiful appearance, excellent performance, flexible operation and convenient maintenance. The safety performance indexes of the products are designed and manufactured according to the national JB/T5500-2004 standard.

Side-loading loaders Product features

1. Matching the re-optimized engine, strengthening the cold start capability, powerful power, and greatly improving the efficiency and performance of the whole machine;
2, advanced cooling system, can withstand 40 degrees of high temperature, can also play the highest performance in high dust environment;
3. Full hydraulic steering, hydraulic valve designed and manufactured by international advanced technology, the quality is stable and reliable, and the performance of the hydraulic system is improved;
4, high-quality Essia pipeline, the strength and reliability are greatly improved;
5, fixed-axis gearbox, power shifting, simple structure, high transmission efficiency, long life, convenient maintenance, more gear positions, high speed, suitable for heavy load heavy working conditions;
6. The structural parts designed and manufactured by finite element analysis have high strength and are suitable for heavy load conditions;
7, the weight is greater, the load capacity is greater.
8, the new cooling system design, can meet the ambient temperature requirements of minus 20 ~ 43 °C.
